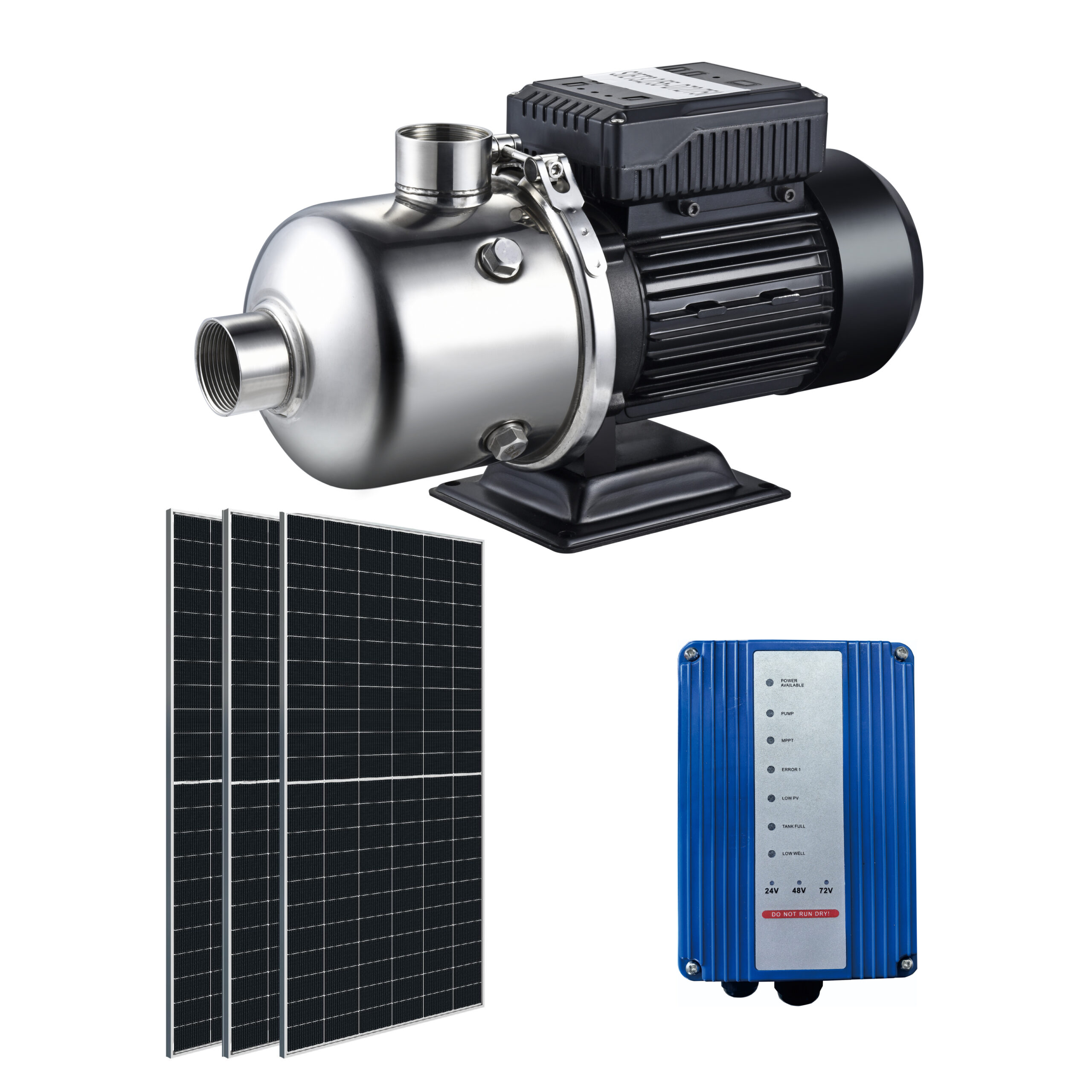

The SOLA4800-80-KIT serves as a solar-powered alternative to traditional pumps, offering convenience, efficiency and sustainability.
This product contains the following:
- Stainless Steel Surface Pump Package. Ideal for transfers from dams rather than bores.
316 stainless steel surface pump to endure harsh conditions. - Full length rotor motors to provide a maximum 4,800L per hour flow and 80m total head capacity.
- Easy to install, user-friendly pump and controller + flow switch with full instruction guide.
- High & low water sensors are included to ensure your pump doesn’t run dry or overfills your tank.
- 1″ outlet for this high-head Garpen surface solar water pump.
- 3m pump power cabling for the pump head, PV cable and MC4 weather resistant solar connectors.
- 2 x 560W solar PV panels that can be coupled together.
- Cabling and instructions on how to connect the solar panels in parallel

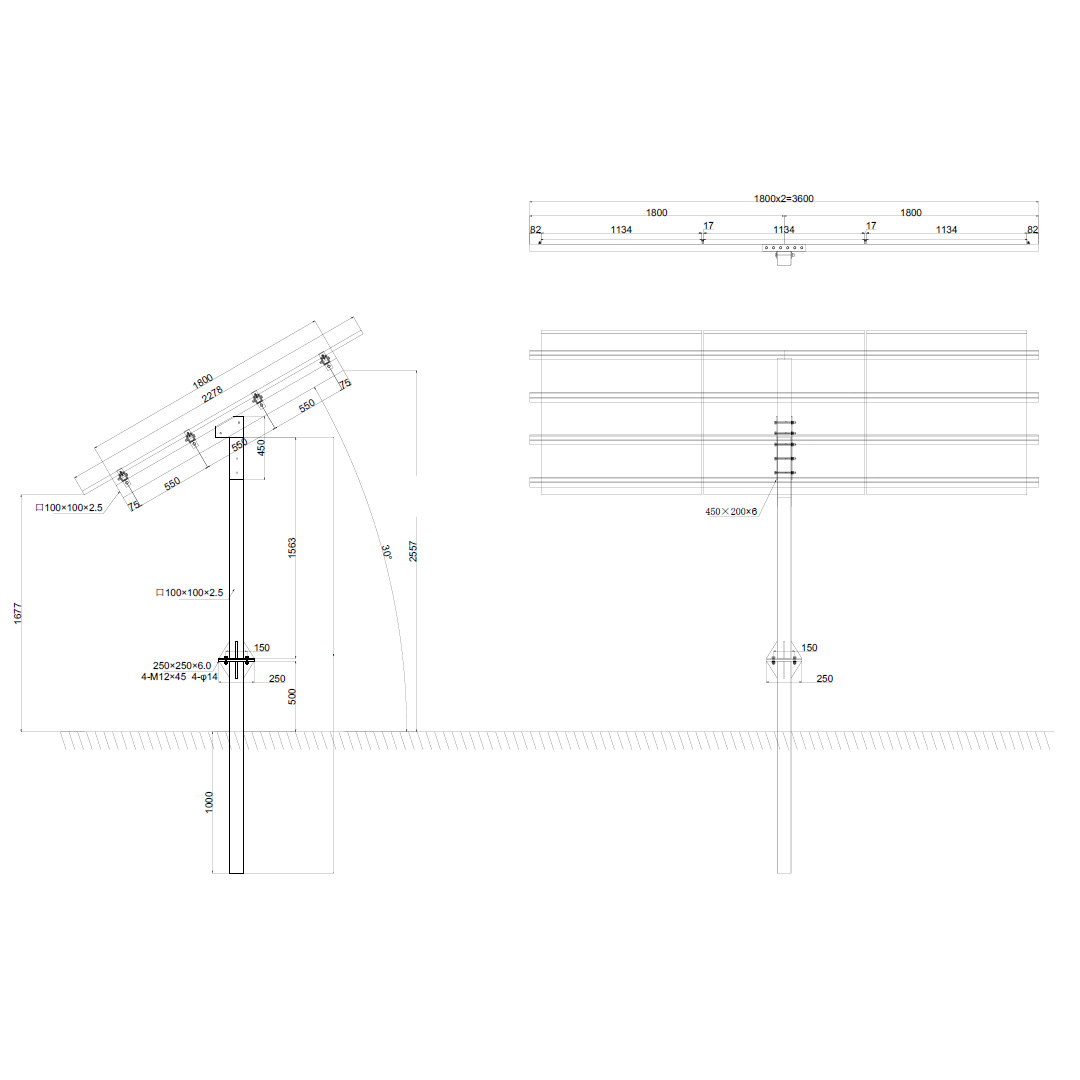

- SOLPOLE-FRAME-2-3X560W, quick and easy is the quick and easy to install frame that can accommodate the 2 solar PV panels.
- The 3 metre pole provides sufficient embedment depth for stability and solar PV panel clearance off the ground to avoid disturbance from animals.
Additional Information

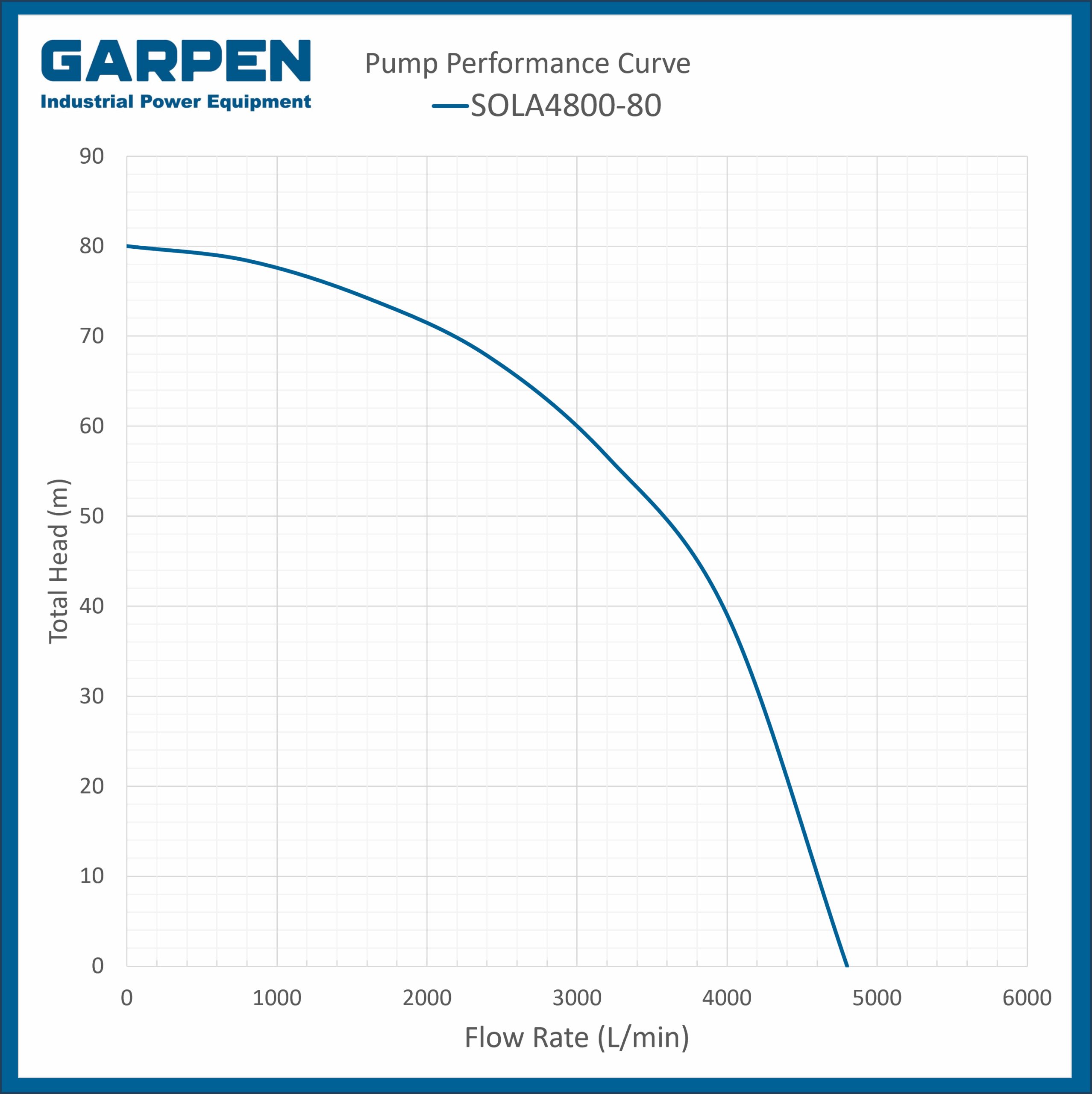

| Max Head (m) | 80 | |
|---|---|---|
| Max Flow (L/hour) | 4800 | |
| Suction Height (m) | 3 | |
| Outlet Size (in) | 1 | |
| Power Input (W) | 750 | |
| Voltage (V DC) | 48 | |
| Pump Material | 316 Stainless Steel | |
| Power Cable Length (m) | 3 | |
| Power Cable Size | 3G4.0mm2 | |
| Solar PV Panels | 2 x 560W Solar Panels | |
| Mounting Frame and Pole | 2x section pole and frame included | |
| Weight (kg) | ||
| Dimensions (cm) | L x W x H |
